Configure Outlook Express E-mail Proxy Settings

2018/06/18 16:41

Note: Before you configure Outlook, please make sure that the "Auth Type" in CCProxy, Accounts windows is set to "IP Address" or "IP/MAC Address". If you have chosen, "User/Password" outlook will fail to connect to email servers.

Suppose email address is support@youngzsoft.com.

Mailbox account: support

Password:

SMTP address: smtp.youngzsoft.com

POP3 address: pop3.youngzsoft.com

Proxy server address: 192.168.0.1

Launch Outlook Express.

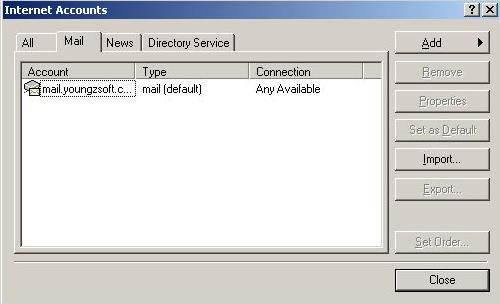

Menu"Tools"--> "Accounts"--> "Mail" Tab

Internet Accounts

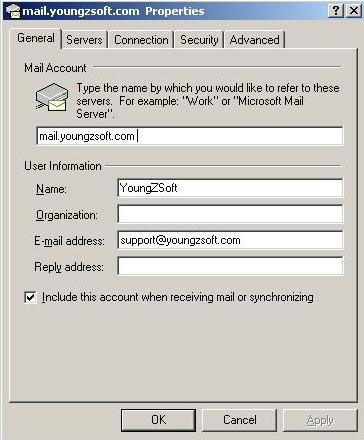

Click button"Properties". The general info should be shown as below:

 Properties

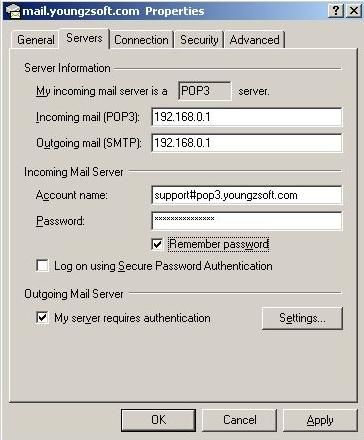

Go to "Server" tab. The info should be shown as below.

Pay attention to the account name of "Incoming Mail Server"

 Properties

Click button "Settings"

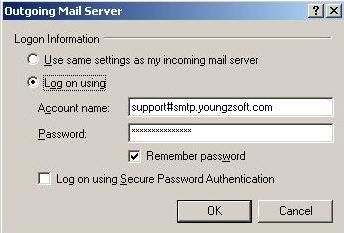

If your original mail server requires authentication when sending emails,

you need to configure as below.

Pay attention to the account name. It is "support#smtp.youngzsoft.com" here.

Outgoing Mail Server

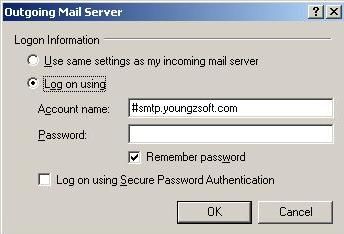

If your original mail server doesn't require authentication when sending emails,

then configure as below.

Pay attention to the account name. It is "#smtp.youngzsoft.com" here.

Outgoing Mail Server
